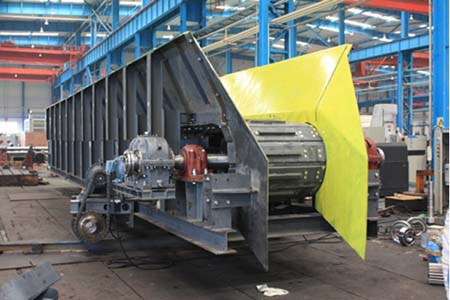

New Type Medium Size Apron Feeder

New Type Medium Size Apron Feeder

Application and Features:
New type medium size apron feeder is designed on the basis of technology of German O&K heavy duty apron feeder, which is of 2 kinds feeding type, fixed feeding and moveable feeding.

This kind of heavy duty apron feeder is widely applied to building material, chemical plant, metallurgy, coal industries. Material with different size, different density should be transported to various receiving device. It shall be mounted by horizontal type and inclined type with max. 25°. It has 2 kinds of adjusting speed, variable frequency adjusting and hydraulic motor adjusting, which can be conducted control interlock with receiving device, to guarantee max. efficiency of receiving device.

NOTE：
1.ASSEMBLING TYPE SHOULD BE APPLIED TO APRON FEEDER. RIGHT DRIVING WILL BE ADOPTED IF NO INDICATION.

2.RIGHT DRIVING DEVICE- DRIVING DEVICE SHOULD BE MOUNTED ON THE RIGHT ALONG MATERIAL RUNNING DIRECTION.
LEFT DRIVING DEVICE- DRIVING DEVICE SHOULD BE MOUNTED ON THE LEFT ALONG MATERIAL RUNNING DIRECTION.

3.LENGTH OF APRON FEEDER CAN BE DESIGNED ACCORDING TO CLIENT’S REQUIREMENT AND PROCESS.

4.LENGEND

Gyratory Crushers

Gyratory Crushers

Application and Features
Gyratory crushers are main equipments for crushing ores and rocks in mining, forging, constructing, chemical industry and power stations. They have high crushing rate, high output rate and their products have even grains.

NHI has more than 50years history of designing and manufacturing gyratory crushers. Its products form series from PXZ-0506 to PXZ-1623. These products are welcomed by domestic and foreign customers for their variety of models, advanced design, reliable capacity, stable running and low consumption of energy.

NHI produces three series of gyratory crushers. They are PXZ (heavy), PXQ (light), and PXF (introduced). PXZ series is used for crushing material of high or intermediate hardness and PXQ series is used for crushing material of intermediate or low hardness. PXF is mainly used as coarse crushing equipments for large open mines and ore dressing plants.

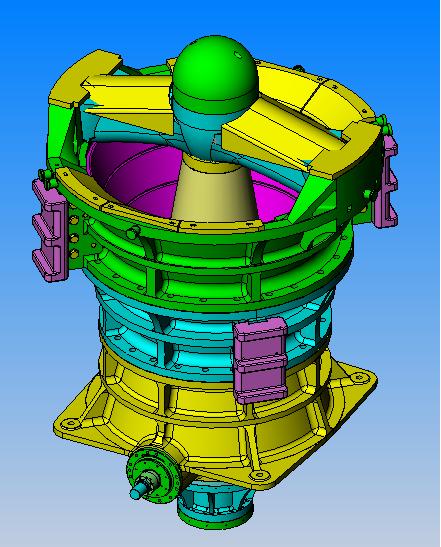

Gyratory crushers consist of transmitting assemblies, bottom shell assemblies, eccentric sleeve assemblies, crushing head assemblies, middle shell assemblies, spider assemblies, motor assemblies, oil cylinder assemblies, pulley assemblies and grease and oil lubricating systems.

The motor drives the eccentric by a horizontal shaft and a pair of conical gears while the crusher is running and force the axis of mantle to swing, therefore the opening of the upper mantle and the lower mantle changes in a certain range and the material is milled, bended and finally crushed. The crushed material is discharged by gravity.

Hydraulic supporting structure is used for bottom shell. Oil is pumped into oil cylinder before starting the machine, and when the cone rises to the working position, shut the disconnection valve and stop the oil pump. The discharge opening of this kind of crushers can be adjusted easily, therefore the grain sizes and output is satisfying. When a non-broken material falling into the crushing chamber causing the breaking force increases, Hydraulic systems also will be increased, the oil tanks have been pressed into the accumulator, thereby bringing down broken cone, behind mine mouth increases, excluding non-broken material. Discharge of non-broken things the role of the accumulator, the oil through the one-way throuttle valve more slowly pressed into the fuel tank, thereby crushing cone is very smooth and automatically reset. When a non-broken material size is too large and can not be discharged of discharge port, the system pressure continues to rise up to the value of electric contact pressure gauge it is set, the control system automatically stops the main motor to ensure the safety of equipment.

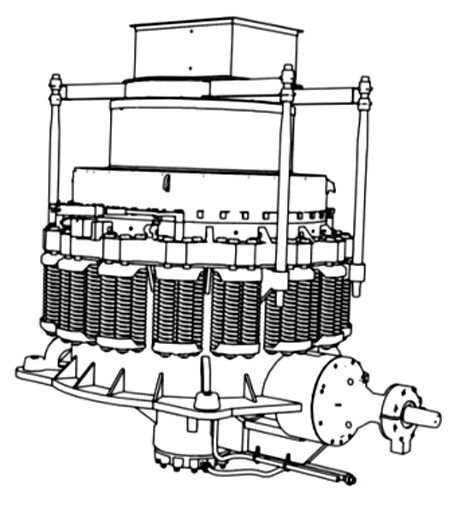

Cone Crusher

Cone Crusher

●Application and Feature
Cone crusher is the main equipment in industrial departments such as metallurgy, construction material, chemical industry, water and electricity, road construction etc, for secondary crushing and fine crushing of all kinds of mine ore or rock, especially in mineral processing plant which adopt secondary crushing and fine crushing operation.

●PYT Series Crusher
PYT series cone crusher is based on the former Soviet Union crusher, after many years optimizing design, gradually formed new type cone crusher. 5 types in total, 14 models, it can meet secondary crushing and fine crushing for different hardness of all kinds of mine ore or rock.

●PYS Series Crusher
PYS series cone crusher is a advancer product than PYT spring cone crusher, in the aspects of production capacity, output products’ particle size homogenizing, fine crushed product’s fine ratio, parts lift, operation ratio, production and maintenance management charge etc, possesses obvious priority than PYT series cone crusher. The fasten device disc spring cylinder lower the damage to sealing caused by shaking, extend the life of sealing.

High Efficiency & Energy Saving Mill with Magnetic

High Efficiency & Energy Saving Mill with Magnetic

●Application and Features
High Efficiency & Energy Saving Mill with Magnetic Liners, mainly used milling materials, is a
Main equipment of milling process, can obtain target-size product required of process

Main features:
*Mill' s tunnel wall adsorbed magnetism liners; bolting unnecessary; dismounting convenience;deracinating phenomena of leaking mines.
*An advanced outputting because the weight of magnetism-liner was lighter than of manganese as same as the thickness.
*Magnetism-liners can lower the noise in process of grinding.
*The life of magnetism-liners is more than ten times of the manganese

●High Efficiency & Energy Saving Mill with Magnetic Liners
NHI is the birthplace of the first mill in China.
NHI owns 2 magnetic material production line, is the national standard constitution company for mineral processing equipment and permanent magnet material.
We are the national standard constitution company for magnetic liner.
We produce and modify more than 500sets of mill with magnetic liners.

Spiral Classifier

Spiral Classifier

Application and Features
Spiral classifier is a very classic mineral processing equipment in the classification of equipment, mainly for concentrator grinding circuit in the pre-grading and inspectionCharles classification, and washing, removing mud and other operations. Spiral classifier is the use of gravity or centrifugal force, according to the settlement of particles in the pattern of fluid material grading equipment. The main bit is: equipment is simple, reliable, easy, easy and less than 3.2m into the loop of grinding bodies. Spiral Classifier in structure can be divided into high weir type, and the sinking of type two. High weir type suitable for coarse classification, the classification overflow size is generally greater than 0.15mm. Sunk screw classifier suitable for fine grading, the grading overflow particle size generally less than 0.15mm.

Reference
Producing more than 1500set in recent years
Spiral classifier national standard constitution company
The biggest spiral classifier which specification isφ3.8m R&D by us, working with φ3.6m series ball mill smoothly in Jing Dong, Jing Hong in Yun Nan

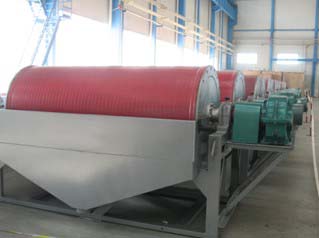

Magnetic Separator

Magnetic Separator

Application & Features
Magnetic separator is a basic equipment of magnetic separation technology. Permanent magnetism drum magnetic sepatator was abroadly used for separating magnetite, reclaiming magnetism weight additive and preselecting wet high-intensity magnetic separationg feeding act. Its remarkably advantage is saving electricity, high magnetic induction, simple construct, low cost, easy of handing, small floor space, large processing capacity. Our corporation used advanced logos designed magnetic circuit, quality materials as well as unique craftsmanship to produce high-grade products.

Magnetic Separator Achievement
The birthplace of Chinese first magnetic separator, the national, field standard constitution company for all the magnetic separator equipment, magnet material, magnet lining.

We obtained 12 patents for magnetic separator invention and practical, new, established 5 items for national, provincial, municipal key science and research items.

In 2008, we won the bidding of 312sets 1230 magnetic separators for Citic Pacific SINO iron mine, our sales volume annually is more than 1000.

We are the designated producing enterprise of magnetic separator equipment of China in last century.

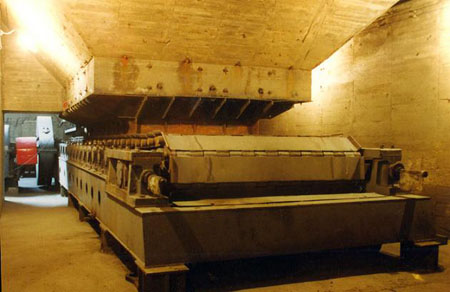

GBZ Type Heavy Duty Apron Feeder

GBZ Type Heavy Duty Apron Feeder

Application and Features:
GBZ type heavy duty apron feeder technology was imported from Soviet Ural Heavy Machinery Co. Ltd. during 1950’s, which is called old type apron feeder. This kind of apron feeder is a transportation machine by chains for traction, which is mounted under the storage. Material should discharge continuously onto trough plate of chains when chains running in order to transport material.

NOTE：
1.ASSEMBLING TYPE SHOULD BE APPLIED TO APRON FEEDER. RIGHT DRIVING WILL BE ADOPTED IF NO INDICATION.

3.LENGTH OF APRON FEEDER CAN BE DESIGNED ACCORDING TO CLIENT’S REQUIREMENT AND PROCESS.

4.LENGEND

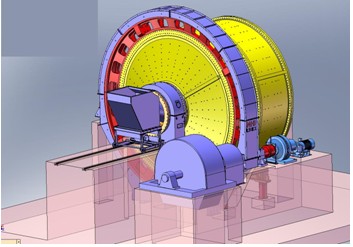

Ball Mill, AG Mill, SAG Mill

Ball Mill, AG Mill, SAG Mill

Product application and features

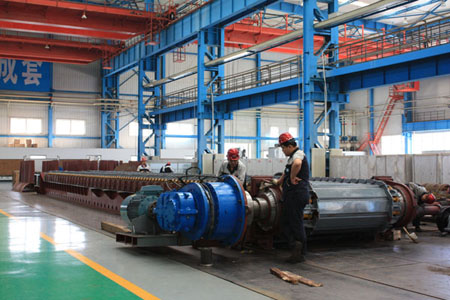

Ball Mill, AG Mill and SAG Mill are widely used in electric power industry, beneficiation processes for ferrous metal and non-ferrous metal, chemical industry, building materials industry and so on. It is the equipment for grinding ores or other materiel with a certain particle size into smaller size.

Mills are produced in our company starting from 50's of last century, especially 80's of last century. Under the situation of state reforming and opening to the outside world, our company takes the mode of cooperative production or importing technology with foreign famous mill companies such as American A-C Company, Fuller Company, Foster-Wheeler Company Svedala Company MPSI Company and France Stene ALSTOM Company and so on. Through absorption and digestion of foreign advanced mill technologies, combining the technical advantage of our company, and innovation on the basis of original sizes, our company can gradually manufacture large size mills that possess independent intellectual property, ball mill from the original sizes of Φ0.9m~Φ3.6m to Φ4m, Φ4.5m, Φ5m, Φ5.5m, Φ6m, Φ6.7m, Φ7.3m and Φ8m, (S)AG mill from the original sizes of Φ4m~Φ6m to Φ6.4m, Φ7.5m, Φ8m, Φ8.8m, Φ9.75m and Φ11m.

Technical Features:
By taking the mode of air clutch or liquid state soft start, smooth starting of ball mill main motor and shell is realized, which could decrease installed power and reduce starting current from 6.5 times of direct starting to 2.5 times.

Using hybrid bearing or pitot-static pressure bearing. For hybrid bearing: taking combined lubrication with high-low pressure oil station, high pressure lubrication is used on start/stop to rise the revolving member, and low pressure lubrication is used during normal running. For pitot-static pressure bearing: using high pressure lubrication to rise the revolving member during whole process. Both two forms of bearing can effectively avoid the phenomenon of “bush burning”, increase service life of bearing.

Bearing types: single pad Babbitt alloy, single pad high leaded bronze, slide shoe bearing (Babbitt alloy).

Driving form: single driving with synchronous motor, single driving with induction motor, double driving with synchronous motor, double driving with induction motor, non-gear driving with ring motor.

Using new wear resistant materials, such as liner, inlet and outlet bush, bearing and so on, increase service life of vulnerable parts.

By taking new processing technology to simplify process flow, such as machining shell, end cover and large gear flange divided, so as to decrease manufacturing cycle.

Equipping auxiliaries, such as slow drive device, lift device.

Optimizing structure of mill: using different structure form according to the material characteristics and the requirement of particle size. Several patents have existed.

Improving automatic control level of mill. Using PLC control system, which has functions of audio and light alarming, fault diagnosis and so on, realized mechanical-electrical-hydraulic control integration.

Lubricating and Grinding Machine

Lubricating and Grinding Machine

1. Introduction
Damp mill is a main equipment of pellet technology, which deals with the materials with water content of 8-13% to make the materials mixed and thinned adequately as well as increase the surface area of material particles. Damp mill can be applied to shorten the production process of pellet, decrease energy consumption of equipment and improve pellet quality and metal recovery, improve working conditions and environmental conditions, etc.

2. Features
Damp mill is a main equipment of pellet technology, which deals with the materials with water content of 8-13% to make the materials mixed and thinned adequately as well as increase the surface area of material particles. Damp mill can be applied to shorten the production process of pellet, decrease energy consumption of equipment and improve pellet quality and metal recovery, improve working conditions and environmental conditions, etc. So it is promoted rapidly in pellet technology.

The working principle is: peripheral gear drives the drum rotating; the material is shocked by grinding medium i.e. steel balls, as well as the grinding between the liner plates of the drum among balls, so that the new surface of materials are fully exposed and the materials are fully mixed. Finally they are discharged through the discharge hole into the next procedure. It can effectively reduce bentonite addition and increase green ball strength.

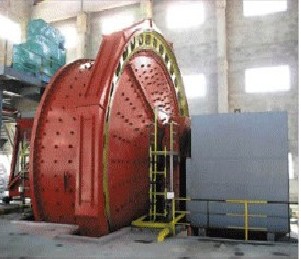

In the basis of bass mill, the damp mill has three main characteristics: compulsory material feeding, peripheral mine discharge and rubber lining.
